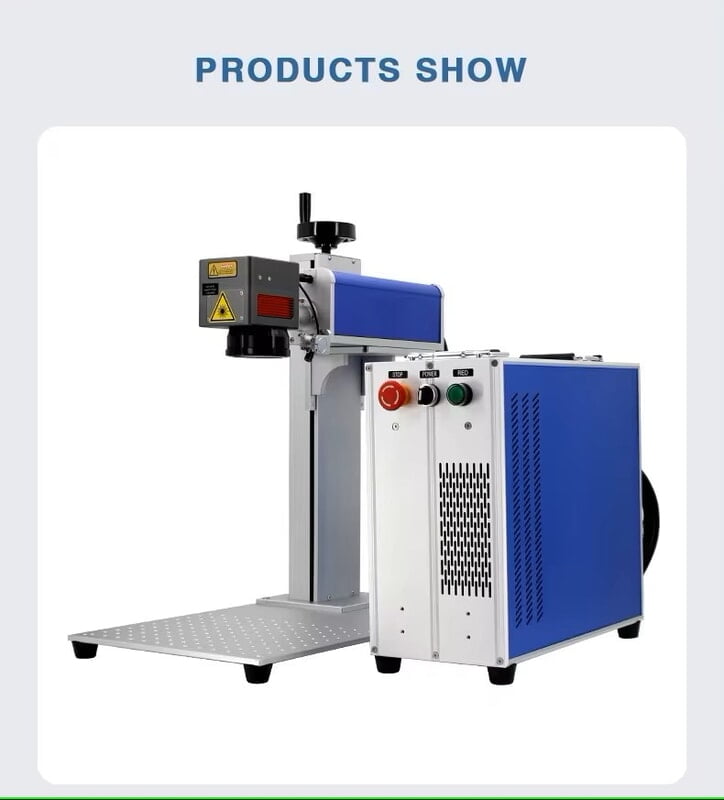

Split Laser Marking Machine
Products Description and Technical Details:
1. Outstanding appearance and powerful performance - fast and accurate / split and portable / multi scene application dual red light positioning
2. Imported laser source - the service life of the laser head is up to 10000+ hours
3. Flexible design, mechanical and sound separation type and cover type, support manual carving and large area carving
4. All kinds of carving materials, mostly plastic and metal - lacquered iron boxes, plastic, pens, metal locks, rings, necklaces, etc.
5. Small detail design - cooling module - carving continuous escort; Knob lifting - manual lifting can move in a large range; Control panel - aluminum alloy wear-resistant and durable specification parameter model: S3 with ventilation hole
Choose Quantity
1 | Laser power | 20W 30W 50W 100W |
2 | Laser wavelength | 1064nm |
3 | Beam quality | M2<2 |
4 | Control software | Ezcad (provided) |
5 | Marking depth | ≤0.3mm |
6 | Cutting depth | ≤1mm(30W 50W 100W mark 1-3mins repeatedly then can cut) |
7 | Marking speed | ≤7000mm/s |
8 | Minimum line width | 0.01mm |
9 | Minimum character | 0.5mm |
10 | Marking Size | 110 * 110mm ( 75mm 200mm 300mm optional ) |
11 | Electric power | <500W |
12 | Working voltage | 110/220V ± 10%, 50/60HZ |
13 | Cooling way | Air cooling |
14 | Ambient operating temperature | 15 ° C - 35 ° C |
15 | Graphic file format | PLT, DXF, AI, BMP, JPG |
16 | Packing | Plywood box |
