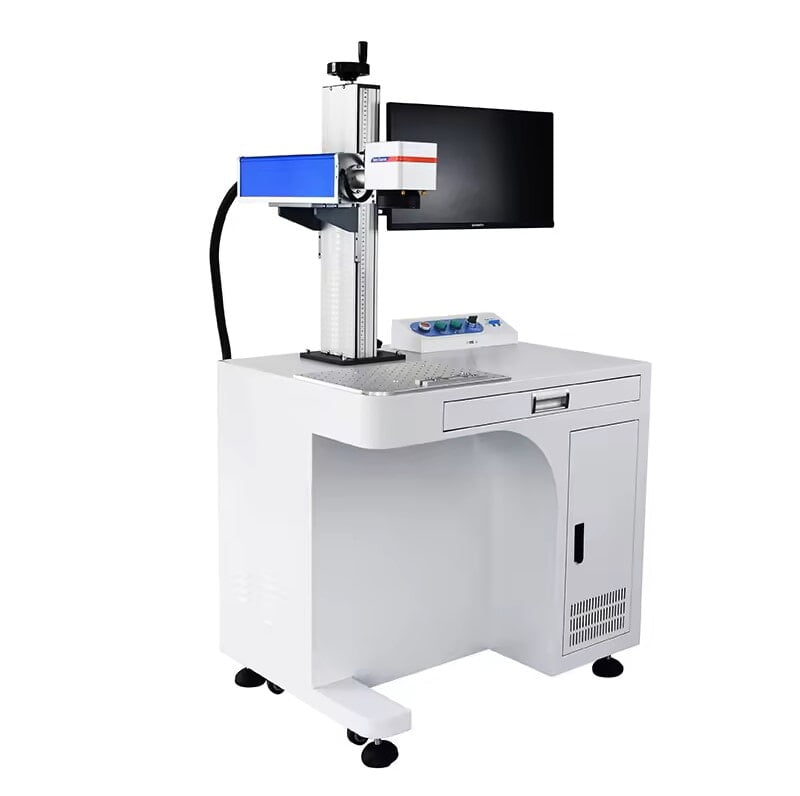

3D Laser Engraving Machine 60 JPT
Choose Quantity
Products Description and Technical Details:
1. Our this 3D laser engraving machine is special designing to meet customers 3D /2D laser engraving application on the metal surface.
2. Engraving high precision spare parts , such as gold, silver, jewelry, electronic spare parts etc.
2. High speed engraving speed and perfect engraving effects.
3. Working time : 100000 hours, and don't need change any consumptive materials.
4. CE certificates.
5. Compact designing.
6. Min marking letter : 0.2mm.
7. Max engraving & cutting depth :<2.0 mm.
Application & Materials
This type laser marker suitable for gold ,silver, diamond, sanitary equipment's, foods packing, tobacco label, beer label, drink label, medicine packing ,medical equipment, glasses and clock ,auto parts, plastic& paper materials ,the electron, hardware which with high request for depth, smooth ,accuracy such as horologe, mould, bitmap marking etc.
Technical Parameters
Laser Source | Fiber Laser |
Output Power | 50 |
Wavelength | 1060nm |
Beam Quality | <2 |
Repeat Frequency | 10KHz ---400KHz |
Pulse Width Adjustable | 8-200 ns |
Beam Divergence | -0.3 to +0.3mrad |
Laser Class | IV |
Resolution | 18μ |
Repeatability | 50μ |
Marking Scope | 200X200MM, |
Linear Speed | 800 character/ s |
Marking Linear Speed | ≤12,000mm/s |
Min. Line Width | 0.012mm |
Min. Character Size | 0.12mm |
Repeat Accuracy | ±0.003mm |
Input Power | 0.5kw |
Electrical Source | 220v/50hz or 60hz |
